SOLID67 IOL8(M8 5P) 30mm M12L 5P
Product may differ from image

SOLID67 IOL8(M8 5P) 30mm M12L 5P

SOLID67 Multiprotocol Profinet or EthernetIP
Art.No.: 54506
Weight: 0.458 kg
In production
 Product Comparison
List price per piece:

You might also like

IOL8
M12 Power, 5-pole, L-coded
M8, 5-pole, B-coded
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
General data
Mounting method 2-hole screw mounting
Temperature range -20...+70 °C
Protection IP67

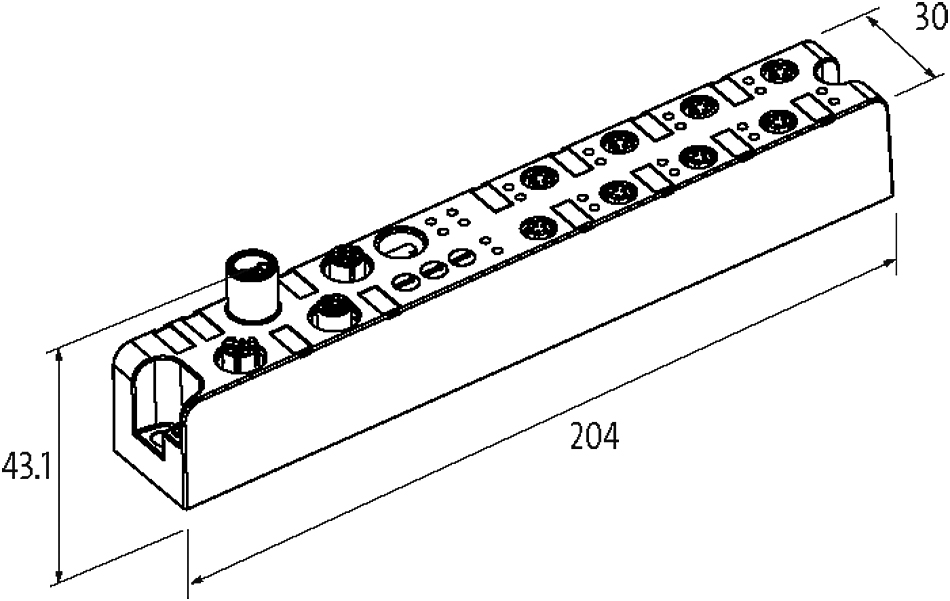

Dimensions H×W×D 43.1×30×204 mm
Output
Actuator supply UA 24 V DC (EN 61131-2), max. 9 A
Switching current per output max. 0.5 A (PIN 4, X1...X8), short-circuit and overload protected
Input
Sensor supply US 24 V DC (EN 61131-2), max. 500 mA (M12 female), short-circuit and overload protected
Type for 3-wire sensors or mechanical switches, PNP, IO-Link Devices
IO-Link
Specification IO-Link Master V1.1
Port Class 4× A (port X1...X4), 4× B (port X5...X8, galvanically separated, PIN 2 max. 4 A, max. 4 A per module)
IO-Link 8× Master
Transfer parameters 32 Input byte and/or 32 Output byte (per IO-Link port)
Operating modes COM1; COM2; COM3 (automatic)
Parameterization
PIN 4 Input (port X1...X8); Output (port X1...X8); IO-Link Master (port X1...X8)
PIN 2 Input (port X1...X4)
Connections
Fieldbus Ethernet 10/100 Mbit/s; M12, D-coded
Sensor-system/actuator supply M12 Power, 5-pole, L-coded
I/O ports M8, 5-pole, B-coded
PROFINET
Specification V2.3, Conformance Class C (IRT)
Addressing DCP
PROFINET Netload Class II
MRP yes
Shared Device/Input yes, for 2 controls
EtherNet/IP
Addressing DHCP, BOOTP or IP address by rotary switch
DLR (Device Level Ring) yes
Diagnostic
Communication status via LED
Diagnostic via LED per module and channel
Diagnostic via BUS per module and channel
Actuator warning via LED and BUS
Monitoring - under voltage yes
Monitoring - no voltage yes
Short-circuit and overload yes
Cable break per port
Commercial data
country of origin DE
customs tariff number 85389099
EAN 4048879727907
eClass 27242604
Packaging unit 1.000
