MASI67 INSTALLATION TECHNOLOGY
Converter 2x profile cable to M12 male
| Art.No.: | 55038 |
| Weight: | 0.12 kg |
| Country of origin: | DE |
Available
Description
MASI67 converter
2× profile cable to M12 (male)
Connection cables are in the online shop under "Connection Technology".
2× profile cable to M12 (male)
Connection cables are in the online shop under "Connection Technology".
Technical Data
Technical Data
| Operating voltage | max. 36 V DC |
|---|---|
| Total current | max. 4 A |
Contact Layout
| PIN 1 | AS-Interface + (brown) |
|---|---|
| PIN 2 | 0 V (blue) |
| PIN 3 | AS-Interface - (blue) |
| PIN 4 | +24 V (brown) |
| PIN 5 | n.c. |
General data
| Mounting method | DIN-rail mountable (EN 60715) or screw fixing |
|---|---|
| Temperature range | -20...+60 °C (storage temperature -40...+80 °C) |
| Test isolation voltage | AS-Interface/Power 200 V, (EN 60664-1) |
| Protection | IP67 |

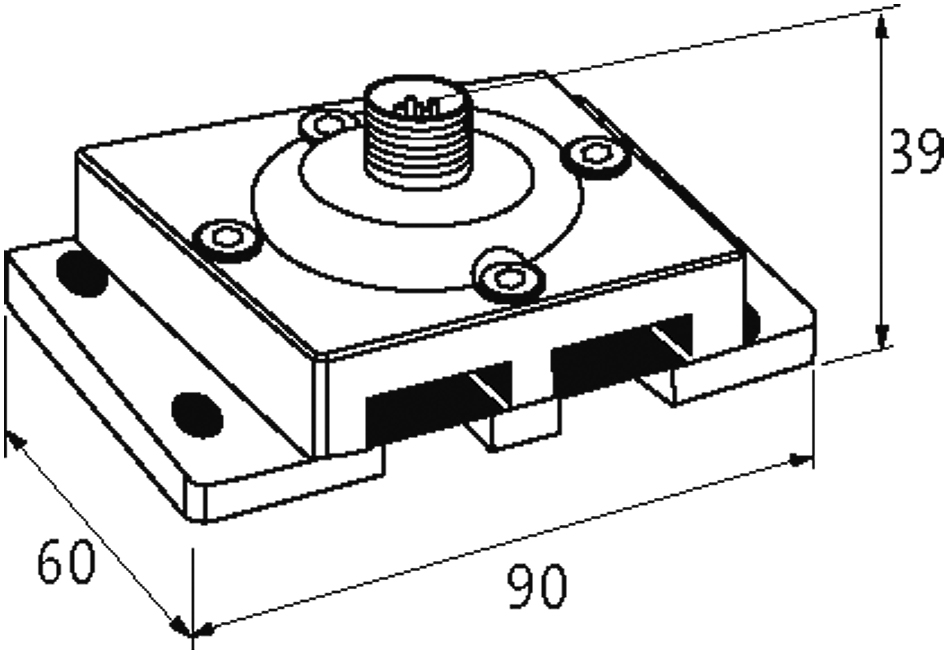

| Dimensions H×W×D | 90×74×39 mm |
Classifications
| ECLASS-6.0 | 27400209 |
|---|---|
| ECLASS-6.1 | 27279219 |
| ECLASS-7.0 | 27279219 |
| ECLASS-8.0 | 27279219 |
| ECLASS-9.0 | 27440108 |
| ECLASS-10.1 | 27440111 |
| ECLASS-11.1 | 27440111 |
| ECLASS-12.0 | 27440111 |
| ETIM-5.0 | EC001583 |
Commercial data
| customs tariff number | 85369010 |
|---|---|
| GTIN | 4048879052139 |
| Packaging unit | 1 |
