MASI68 I/O EXTENSION MODULE
Product may differ from image

MASI68 I/O EXTENSION MODULE

2 analog Outputs U/I configurable
Art.No.: 56474
Weight: 0.185 kg
  Available
 Product Comparison
List price per piece:

You might also like

AO2 - (E) 2× M12 (UI)
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Connections
Fieldbus A-coded
I/O ports M12, 4-pole
Technical Data
Bus voltage (AS-Interface) 26.5...31.6 V DC
Addressing via master or M12 connection and programming device
Address range 1...31
Profile (IO/ID/ID2 code) S-7.3.5
Total current max. 100 mA
General data
Protection IP68
Mounting method screw fixing
Temperature range -20...+60 °C (storage temperature -20...+70 °C)

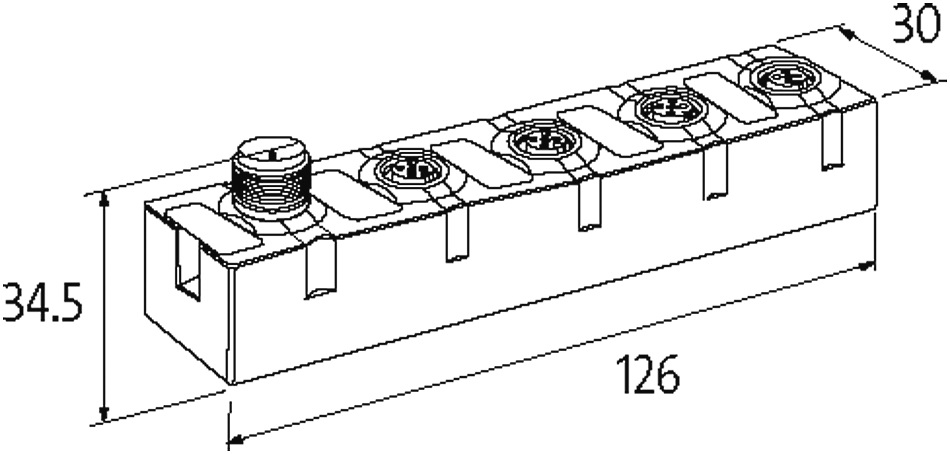

Dimensions H×W×D 126×30×34.5 mm
Output
Supply voltage 26.5...31.6 V DC
Conversion time (analog) max. 1.5 ms
Actuator supply UA 24 V DC external (18...30.2 V DC) EN 61131-2
Resolution (analog) 15 Bit + sign
Accuracy max. 0.5%
Diagnostic
Communication status via LED
Diagnostic via LED per module
Monitoring - no voltage yes
Wire break upper/lower limit overload per module via LED and BUS
Voltage output signals
Load min. 1 kΩ, (EN 61131-2)
Input range -10 V DC...+10 V DC
Current outputs
Load max. 60 Ω (EN 61131-2)
Input range 0...20 mA, 4...20 mA
Commercial data
country of origin DE
customs tariff number 85176200
EAN 4048879611183
eClass 27242604
Packaging unit 1
