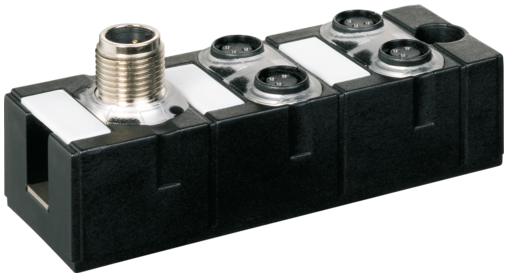

MASI68 DI4/0,18A 4xM8 56435
Product may differ from image

MASI68 DI4/0,18A 4xM8

Art.No.: 56435
Weight: 0.09 kg
Country of origin:  CZ
Out of Stock - Contact Us for Availability
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

Compact module
DI4 - 0.2 A (C) - 4× M8
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Certificate
Certificate
Certificate
Certificate

Input
Sensor supply US max. 180 mA from AS-Interface (short-circuit and overload protected)
Type for 3-wire sensors or mechanical switches, PNP
Technical Data
Bus voltage (AS-Interface) 26.5...31.6 V DC
Profile (IO/ID/ID2 code) S-0.0.0
Addressing via master or M12 connection and programming device
Address range 1...31
Total current max. 250 mA
General data
Mounting method screw fixing
Temperature range -20...+60 °C (storage temperature -20...+70 °C)
Protection IP68
Dimensions H×W×D 85×30×34.5 mm
Diagnostic
Communication status via LED
Diagnostic via LED per module
Monitoring - no voltage yes
Connections
Fieldbus A-coded
I/O ports M8, 3-pole

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
customs tariff number 85176200
EAN 4048879048828
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Listed CA 56435_E201820-NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 56435_E201820-NRAQ_ul_z_a.pdf
  • Download Certificate: ASI  56435_82902_asi_z_a.pdf
  • Download Construction files: P8 56435_p8_2_50.zip
  • Download Construction files: P8 56418_p8_2_30.zip
  • Download Document: Installation guide 56420_ina_6_28.pdf
  • Download Document: User manual 56430_hdb_x_29.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 56435_5047-04.16_uk_z_a.pdf
  • Download Information: EU declaration of conformity 56435_5047-04.16_ce_z_b.pdf
  • Download Information: MTTF Report 56435_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf
