MASI67 I/O MODULE
4 digital inputs
| Art.No.: | 56400 |
| Weight: | 0.236 kg |
| Country of origin: | CZ |
Contact Us for Availability
Description
Digital inputs
DI4 - 0.2 A (AB) - 4× M12
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
DI4 - 0.2 A (AB) - 4× M12
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Technical Data
Electrical data | Supply
| Bus voltage AS-Interface DC min. | 26,5 V |
|---|---|
| Bus voltage AS-Interface DC max. | 31,6 V |
| Current consumption AS-i port max. | 250 mA |
Electrical data | Input
| Overload resistant | yes |
|---|---|
| Short-circuit protected | yes |
| Type input | PNP, for 3-wire sensors or mechanical switches |
| Current carrying capacity max. | 0,2 A |
Industrial communication | Bus data
| Address setting type | Addressing socket, Master |
|---|---|
| Slave address range | (0), 1 A...31 A, 1 B...31 B |
Industrial communication | AS-Interface
| Profile (IO.ID.ID2) | S-0.A.0 |
|---|
Diagnostics
| Diagnostic via BUS | yes |
|---|---|
| Diagnostic via LED | per module |
| LED display | Ethernet connection/data traffic |
Installation | Connection
| Double assignment M12 female | no |
|---|
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
|---|
Mechanical data | Mounting data
| Mounting method | screwed, geschnappt |
|---|---|
| Suitable for mounting type | (EN 60715), mounting rail |

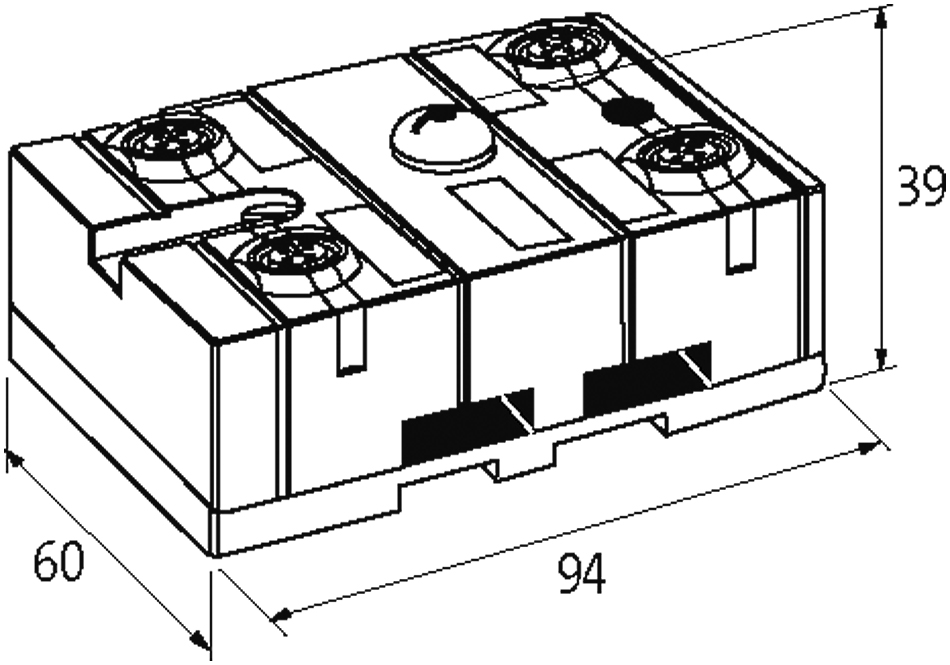

| Height | 94 mm |
| Width | 60 mm |
| Depth | 39 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
|---|---|
| Operating temperature max. | 60 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 70 °C |
Connection data
Connection types
| Connection type 1 | 0-3 |
|---|
Connection type 1
| Family construction form | M12 |
|---|---|
| Gender | female |
| Color contact carrier | black |
| Coding | A |
| No. of poles | 5 |
Commercial data
| ECLASS-6.0 | 27242604 |
|---|---|
| ECLASS-6.1 | 27242604 |
| ECLASS-7.0 | 27242604 |
| ECLASS-8.0 | 27242604 |
| ECLASS-9.0 | 27242604 |
| ECLASS-10.1 | 27242604 |
| ECLASS-11.1 | 27242604 |
| ECLASS-12.0 | 27242604 |
| ETIM-5.0 | EC001599 |
| customs tariff number | 85176200 |
| GTIN | 4048879049115 |
| Packaging unit | 1 |
