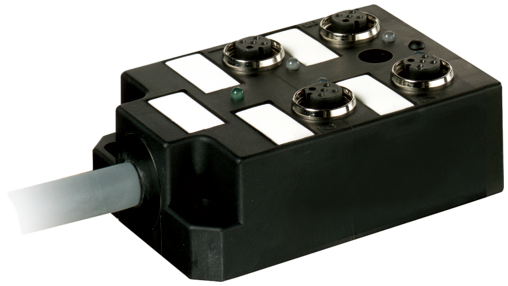

PASSIVE-DI0° PLASTIC,4XM12,5POL,PRE-WIRED CABLE
Product may differ from image

PASSIVE-DI0° PLASTIC,4XM12,5POL,PRE-WIRED CABLE

10.0m PUR-JB 8*0,34+3*0,75
Art.No.: 27834
Weight: 1.387 kg
  Available
 Product Comparison
List price per piece:

You might also like

4-way, 5-pole
PUR/PVC
10.0 m
with LED for digital PNP-signals 24 V DC
Further cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
Contact Layout
PIN 1 (+)
PIN 2 (NC)/(S2)
PIN 3 (-)
PIN 4 (NO)/(S1)
PIN 5 (Earth)
LED display LED (green): Power / LED (yellow): (S1/S2)
Cables
Cable number 363
No./diameter of wires 8× 0.34 + 3× 0.75 mm²
Wire isolation PVC
C-track properties 2 Mio.
Jacket Color gray
Material (jacket) PUR/PVC (UL/CSA)
Outer Ø 8.1 mm ±5%
Bend radius (moving) 10× outer Ø
Temperature range (fixed) -30...+80 °C
Temperature range (mobile) -5...+70 °C
Cable identification 363
Cable Type 2 (PUR/PVC)
Approval (cable) UL (AWM-Style 21441/10955), CE conform
Cable weight [g/m] 115,5
Material (wire) Cu wire, bare
Resistor (core) max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Single wire Ø (core) 0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
Construction (core) 19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
Diameter (core) 8× 0.34 + 3× 0.75 mm²
AWG similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
Material (wire isolation) PVC
Material property (wire isolation) CFC-, cadmium-, silicone- and lead-free
Shore hardness (wire isolation) 43 ±5 D
Wire-Ø incl. isolation 1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
Shield no
Material (jacket) PUR/PVC
Shore hardness (jacket) 87 ±5 A
Outer-Ø (jacket) 8.1 mm ±5%
Color (jacket) gray
chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
Nominal voltage U0/U 300/300 V AC
Test voltage 2000 V AC
Current load capacity to DIN VDE 0298-4
Temperature range (fixed) -30...+80 °C
Temperature range (mobile) -5...+70 °C
Bend radius (fixed) 5× outer Ø
Bend radius (moving) 10× outer Ø
No. of bending cycles (C-track) max. 2 Mio. (25 °C)
Traversing distance (C-track) max. 5 m (horizontal)
Travel speed (C-track) max. 2 m/s
Acceleration (C-track) max. 10 m/s²
Technical Data
Operating voltage 24 V DC
Operating current per contact max. 4 A
Total current max. 10 A
Signal per port 2
Locking of ports Screw thread (M12×1 mm)
General data
Dimensions H×W×D 82×54.5×25 mm
Protection IP67 inserted and tightened (EN 60529)
Temperature range -20...+80 °C
Commercial data
country of origin CZ
customs tariff number 85444290
EAN 4048879062992
eClass 27279219
Packaging unit 1

Data Regarding Article:
