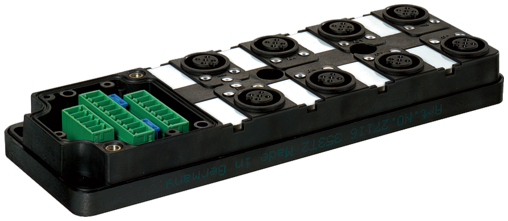

MVP12, 8XM12, 5POLE, BASIC HOUSING
Product may differ from image

MVP12, 8XM12, 5POLE, BASIC HOUSING

Without cap, with potent. sep.
Art.No.: 27116
Weight: 0.115 kg
  Available
 Product Comparison
List price per piece:

You might also like

8-way, 5-pole
Potential separation as option
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request. Further cable lengths on request.
Contact Layout
PIN 1 (+)
PIN 2 (NC)/(S2)
PIN 3 (-)
PIN 4 (NO)/(S1)
PIN 5 (Earth)
LED display LED (green): Power / LED (yellow): (S1/S2)
Technical Data
Operating voltage 24 V DC
Operating current per contact max. 4 A
Total current max. 2× 8 A
Signal per port 2
Locking of ports Screw thread (M12×1 mm)
Housing Plastic, flame retardant
Protection IP67 inserted and tightened (EN 60529)
General data
Temperature range -20...+80 °C
Dimensions H×W×D 149.2×50.2×17.2 mm
Commercial data
country of origin DE
customs tariff number 85369010
EAN 4048879064118
eClass 27279219
Packaging unit 1

Data Regarding Article:
  • Download Data Sheet
  • Download Approvals and certificates 27116_02-02.18_ce_z_a.pdf
  • Download Approvals and certificates 27116_E201820_NRAQ7_ulc_z_a.pdf
  • Download Approvals and certificates 27116_E201820_NRAQ_ul_z_a.pdf
  • Download China RoHS Information EPUP-25_CHR_x_1.pdf
  • Download Drawing Files 27116_stp_x_a.zip
  • Download Drawing Files 27116_dxf_x_a.zip
cULus
cURus
