MVP-METALL, 8XM12, 5POLE, PRE-WIRED CABLE 27501
Product may differ from image

MVP-METALL, 8XM12, 5POLE, PRE-WIRED CABLE

10.0m PUR 16x0,34+5x0,75, UL/CSA

Art.No.: 27501
Weight: 3.36 kg
Country of origin:  CZ
Contact Us for Availability
Find similar Product
Ask question
 Recommend Product
Product Comparison
List price per piece:
Download to the Data Cart Download to Easy-Import-Export

Description


8-way, 5-pole, DIAGNOSTIC
10.0 m
integrated electronic current monitoring with shutoff
electronic diagnostic with ERROR LED
Further cable lengths on request.
All M12 ports are current monitored regarding 0 V total current (contact 3), and are switched off in case of overload or short-circuit (self-reseting). Supply voltage of other ports remains the same. In case of a fault the DIAGNOSTIC signal “active high” to the PLC (wire “brown” 2) drops from 24 V DC to 0 V. The operator can immediately react by analysing the diagnostic signal.
Certificate

Electrical data | Supply
Operating voltage DC 24 V
Current consumption max. 35 mA
Total current max. 10 A
Electrical data | Input
Current input full equipment min. 10 A
Current carrying capacity per port max. 0,5 A
Electrical data | Output
Diagnostic output active high
Current diagnostic output max. 25 mA
Diagnostics
Status indication LED green, red
Installation | Connection
Mounting set M12 x 1
Device protection | Electrical
Degree of protection (EN IEC 60529) IP65, IP67, IP68
Additional condition protection degree inserted, screwed
Short circuit current min. 0,7 A
Short circuit current max. 0,9 A
Short-circuit protected yes
Overload resistant yes
Overload current min. 0,7 A
Overload current max. 0,9 A
Mechanical data | Material data
Coating housing Nickeled
Material housing Zinc die-casting
Mechanical data | Mounting data
Mounting method Schraubgewinde

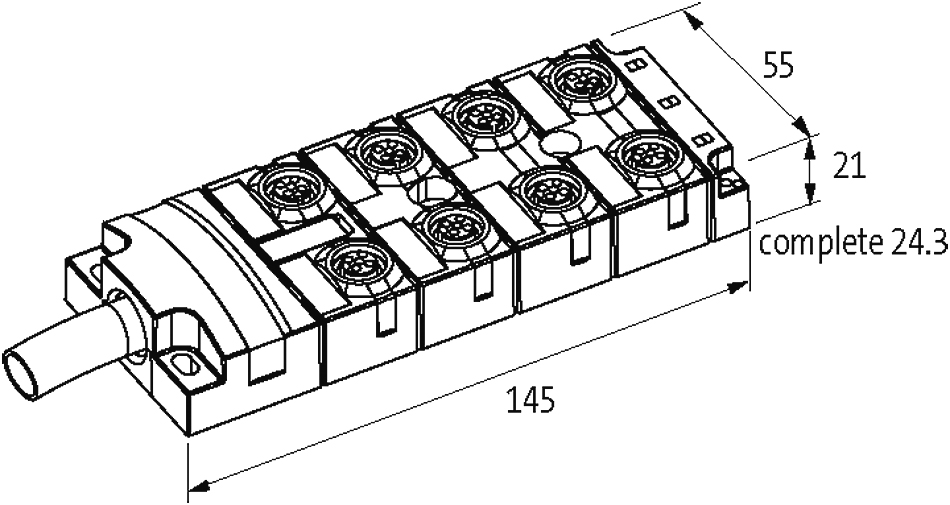

Height 145 mm
Width 55 mm
Depth 21 mm
Environmental characteristics | Climatic
Operating temperature min. -20 °C
Operating temperature max. 60 °C
Conformities, approvals, certificates
Product standard EN 61131-2

Cable
No./diameter of wires 16× 0.34 + 5× 0.75 mm²
Wire isolation TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye)
C-track properties 5 Mio.
Outer Ø 11.5 mm ±5%
Cable number 403
Approval (cable) UL (AWM-Style 20233/10042), CSA; CE conform
Material wire Cu wire, bare
Resistor (core) max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Single wire Ø (core) 0.1 mm
Diameter (core) 16× 0.34 + 5× 0.75 mm²
AWG similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
Material wire isolation TPE-E
Shore hardness wire isolation 55 ±5 D
Shield yes
Shore hardness jacket 85 ±5 A
Jacket Color gray
Nominal voltage 300/500 V AC
Test voltage 2000 V AC
Current load capacity to DIN VDE 0298-4
Temperature range (fixed) -40...+90 °C
Temperature range (mobile) -25...+80 °C
Bend radius (fixed) 5× outer Ø
Bend radius (moving) 10× outer Ø
Bend radius (moving) 10× outer Ø
No. of bending cycles (C-track) max. 5 Mio. (25 °C)
Travel speed (C-track) max. 2 m/s
Acceleration (C-track) max. 5 m/s²
Material jacket PUR (UL/CSA)

Connection type 1
Family construction form free cable end
No. of poles 21
Connection type 2
Family construction form M12
Gender female
Color contact carrier black
Coding A
No. of poles 5
PIN 1 +
PIN 2 NC S 2
PIN 3 -
PIN 4 NO S 1
PIN 5 PE

ECLASS-6.0 27279219
ECLASS-6.1 27279219
ECLASS-7.0 27279219
ECLASS-8.0 27279219
ECLASS-9.0 27440108
ECLASS-10.1 27440108
ECLASS-11.1 27440108
ECLASS-12.0 27440108
ETIM-5.0 EC002585
customs tariff number 85444290
GTIN 4048879063739
Packaging unit 1


Data Regarding Article:
  • Product-PDF
  • Construction files: DXF 8000-58510-4520300_dxf_x_a.zip (A)
  • Construction files: STP 8000-58510-4520300_stp_x_a.zip (A)
  • Document: Installation guide 27501_ina_2_10.pdf (10)
  • Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf (02)
  • Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf (01)
  • Information: EU declaration of conformity 27501_1341-04.16_ce_z_b.pdf (B)
