Adaptor M12 male / M8 female A-cod.

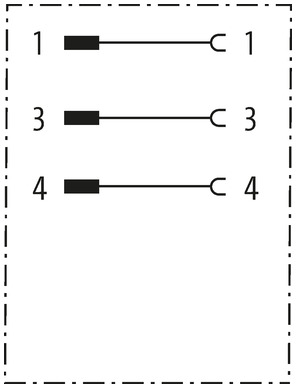

3-pol., conf. 1,3,4
| Art.No.: | 7000-42201-0000000 |
| Weight: | 0.013 kg |
| Country of origin: | DE |
Contact Us for Availability
Description
Adapter
Male - female
M12 – M8, 3-pole
for M12 distribution box, 3-pole
Art-No. 7005 - M12/M8 Lite - (plastic hexagonal screw) on request
Male - female
M12 – M8, 3-pole
for M12 distribution box, 3-pole
Art-No. 7005 - M12/M8 Lite - (plastic hexagonal screw) on request
Technical Data
Side 1
| Tightening torque head 1 | 0,6 Nm |
|---|---|
| Family form head 1 | M12 |
| Thread | M12 x 1 |
| Coding head 1 | A |
| Number of poles head 1 | 3 |
| Width across flats head 1 | SW13 |
Side 2
| Tightening torque head 2 | 0,4 Nm |
|---|---|
| Family form head 2 | M8 |
| Thread | M8 x 1 |
| Coding head 2 | A |
| Number of poles head 2 | 3 |
| Width across flats head 2 | SW9 |
Electrical data | Supply
| Operating voltage AC max. | 50 V |
|---|---|
| Operating voltage AC max. (UL-listed) | 30 V |
| Operating voltage DC max. | 60 V |
| Operating voltage DC max. (UL-listed) | 30 V |
| Current operating per contact max. | 4 A |
Device protection | Electrical
| Rated surge voltage | 1,5 kV |
|---|---|
| Material group (IEC 60664-1) | I |
| Degree of protection (EN IEC 60529) | IP67 |
| Protection degree additional condition | inserted, screwed |
| Pollution Degree | 3 |
Mechanical data | Material data
| Coating locking | Nickeled |
|---|---|
| Material housing | PUR |
| Locking material | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | Schraubgewinde |
|---|
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
Conformities, approvals, certificates
| Product standard | DIN EN 61076-2-101 (M12), DIN EN 61076-2-114 (M8) |
|---|
Commercial data
| ECLASS-6.0 | 27143423 |
|---|---|
| ECLASS-6.1 | 27260702 |
| ECLASS-7.0 | 27440102 |
| ECLASS-8.0 | 27440102 |
| ECLASS-9.0 | 27440106 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440106 |
| ETIM-5.0 | EC001855 |
| customs tariff number | 85366990 |
| GTIN | 4048879143202 |
| Packaging unit | 1 |
