CUBE67 DIO16 DO16 E 16XM12 (1,6/2A)  56641
Product may differ from image

CUBE67 DIO16 DO16 E 16XM12 (1,6/2A)

Art.No.: 56641
Weight: 0.6 kg
Country of origin:  CZ
Out of Stock - Contact Us for Availability
 Product Comparison
List price per piece:

Description

Expansion module
DIO16 - 1.6 A DO16 - 2 A (E) - 16× M12
Digital inputs/outputs (multifunctional)
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.

General data
Mounting method 4 hole screw mounting
Temperature range 0...+55 °C (storage temperature -20...+75 °C)
Protection IP67

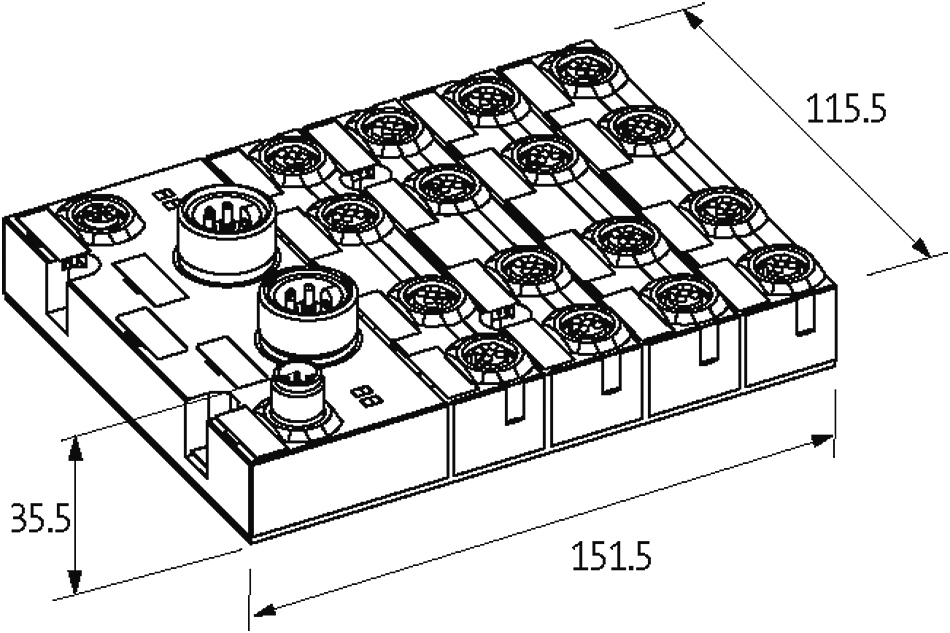

Dimensions H×W×D 151.5×115.5×35.5 mm
Output
Actuator supply (8× M12 left side) 24 V DC (EN 61131-2), via 7/8" male (max. 2× 9 A)
Actuator supply (8× M12 right side) 24 V DC (EN 61131-2), via 7/8" male (max. 2× 9 A)
Lamp load (8× M12 right) 40 W
Switching current per output (8× M12 right) max. 2 A (short-circuit and overload protected), coincidence factor 50% per port
Switching current per output (8× M12 left) max. 1.6 A (short-circuit and overload protected), coincidence factor 50% per port
Lamp load (8× M12 left) 30 W
Input
Sensor supply US 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
Type for 3-wire sensors or mechanical switches, PNP
Input filter 1 ms
Internal communication
LED display US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)
Current consumption max. 50 mA
Parameterization
PIN 2 (8× M12 right side) Output
PIN 2 (8× M12 left side) Input/Output/Diagnostic
PIN 4 (8× M12 right side) Output
PIN 4 (8× M12 left side) Input/Output
Connections
Fieldbus via internal system connection
Sensor-system/actuator supply via internal system connection (max. 2× 4 A)
I/O ports M12 (female) 5-pole, A-coded
Product article number of manufacturer 56641
Diagnostic
Communication status via LED
Diagnostic via LED per module and channel
Diagnostic via BUS per module and channel
Actuator warning per channel via LED and BUS
Monitoring - under voltage yes
Monitoring - no voltage yes
Short-circuit and overload yes

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
customs tariff number 85389099
EAN 4048879048422
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Construction files: DXF 56641_dxf_x_a.zip
  • Download Construction files: P8 56641_p8_2_50.zip
  • Download Construction files: STP 56641_stp_x_a.zip
  • Download Document: Installation guide 56641_ina_6_12.pdf
  • Download Document: User manual 56975_hdb_x_12.zip
  • Download Document: User manual 56970_hdb_x_25.zip
  • Download Document: User manual 56971_hdb_x_36.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 13-11.20_(2) RoHS&REACh exception 7cI_DoC_z_c.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 16-12.20_(2) China RoHS 2 20EEP_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10.21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 56641_972-05.16_uk_z_a.pdf
  • Download Information: EU declaration of conformity 56641_972-05.16_ce_z_b.pdf
  • Download Information: MTTF Report 56641_SN29500 (40°C)-BerechnungV1.3_mttf_p_a.pdf
