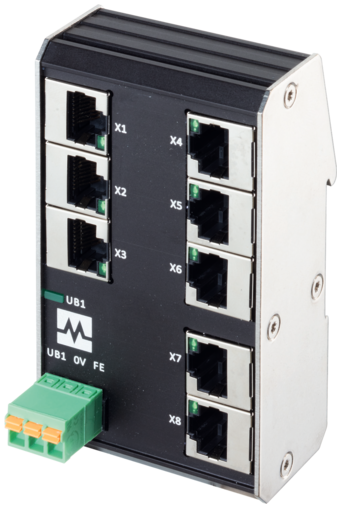

Xenterra 8TX unmanaged Switch 8 Port 100Mbit  58902
Product may differ from image

Xenterra 8TX unmanaged Switch 8 Port 100Mbit

Art.No.: 58902
Weight: 0.255 kg
Country of origin:  DE
Out of Stock - Contact Us for Availability
 Product Comparison
List price per piece:

Description

8 port unmanaged switch
DIN-rail mountable TH35 (EN 60715)
Connection cables are in the online shop under "Connection Technology".
Certificates as JSON - filtered

Technical Data
Operating voltage 8...28 V AC/9...36 V DC
Transfer rate 10/100 Mbit/s full duplex
Operating modes Autocrossing Autonegotiation
General data
Mounting method DIN-rail mountable TH35 (EN 60715)
Temperature range -40...+70 °C (storage temperature -40...+85 °C)
Housing Metal black
Protection IP20

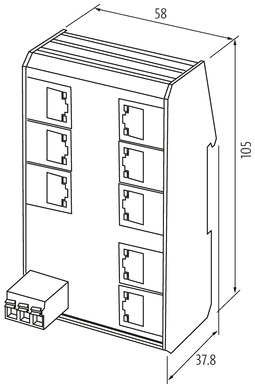

Dimensions H×W×D 105×58×37.8 mm
Connections
Fieldbus 8× RJ45
Supply Push-In spring clamp terminals, 0.2...2.5 mm² (0.25...1.5 mm²)
Switch Management
Protocols no
Port Mirroring no
VLAN (QoS) IEEE 802.p yes
Alarm contact no
Remote maintenance no
Webserver no
Switch Form Unmanaged Switch
Product article number of manufacturer 58902
Diagnostic
Communication status via LED
Monitoring - no voltage yes

ECLASS-6.0 19170106
ECLASS-6.1 19170106
ECLASS-7.0 19170106
ECLASS-8.0 19170106
ECLASS-9.0 19170106
ECLASS-10.1 19170402
ECLASS-11.1 19170402
ECLASS-12.0 19170402
ETIM-5.0 EC000734
customs tariff number 85176200
EAN 4048879830294
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Approval: UL Listed CA 58902_E201820-NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 58902_E201820-NRAQ_ul_z_a.pdf
  • Download Construction files: DXF 58902_dxf_x_a.zip
  • Download Construction files: P8 58902_p8_2_10.zip
  • Download Construction files: STP 58902_stp_x_a.zip
  • Download Document: Installation guide 58900_ina_x_12.zip
  • Download Document: Product data 58902_pd_x_13.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 16-12.20_(2) China RoHS 2 20EEP_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 13-11.20_(2) RoHS&REACh exception 7cI_DoC_z_c.pdf
  • Download Information: Certificate of conformity UKCA 58902_10-03.22_uk_z_b.pdf
  • Download Information: EU declaration of conformity 58902_10-03.22_ce_z_b.pdf
  • Download Information: MTBF Report 58902_SN29500(70°C)-Berechnung_mtbf_p_a.pdf
