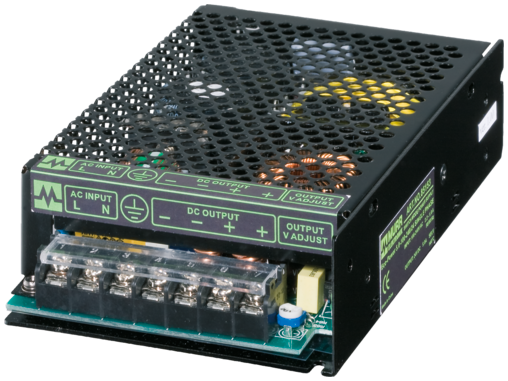

ECO-POWER POWER SUPPLY 1-PHASE, 85152
Product may differ from image

ECO-POWER POWER SUPPLY 1-PHASE,

IN: 90-264 VAC OUT: 24V/2,5ADC
Art.No.: 85152
Weight: 0.43 kg
Country of origin:  CN
Available
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:

Description

INPUT: 100...240 V AC
OUTPUT: 24 V DC ±1%
Current: 2.5 A
Certificate
Certificate

General data
Standards IEC 61010-2-201, EN 61204-3, EN 55011 B
Mounting method screw fixing, M3
Temperature range 0...+40 °C, ...+50 °C derating (storage temperature -20...+85 °C)
Relative humidity 20...90%, no condensation
Efficiency 85% (115 V AC); 87% (230 V AC)
Dimensions H×W×D 40×98×135 mm
Output
Output voltage 24 V DC ±1%
LED display LED (green) for output voltage
Output current 2.5 A (+40 °C); 2.0 A (+50 °C)
Mains failure bridging time min. 10 ms (115 V AC); min. 90 ms (230 V AC)
Ripple max. 20 mV eff/rms
Spikes max. 100 mV ss/pp
Unit protection short-circuit and overload protected
Parallel usage/serial usage no/yes (max. 2 units)
Input
Input voltage 100...240 V AC
Primary fusing external max. 16 A
Input current 1.2 A (115 V AC); 0.5 A (230 V AC)
Inrush current after 1 ms max. 20 A
Frequency 50...60 Hz
Product article number of manufacturer 85152

ECLASS-6.0 27049002
ECLASS-6.1 27049002
ECLASS-7.0 27049002
ECLASS-8.0 27049002
ECLASS-9.0 27040701
ECLASS-10.1 27040701
ECLASS-11.1 27040701
ECLASS-12.0 27040701
ETIM-5.0 EC002540
customs tariff number 85044083
EAN 4048879080439
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Construction files: DXF 85152_dxf_x_a.zip
  • Download Construction files: STP 85152_stp_x_a.zip
  • Download Document: Installation guide 85152_ina_4_15.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 85152_20-10.20_uk_z_a.pdf
  • Download Information: EU declaration of conformity 85152_20-10.20_ce_z_d.pdf
