MICO electronic circuit protection, 4 CHANNELS 9000-41034-0100600
Product may differ from image

MICO electronic circuit protection, 4 CHANNELS

IN: 24 V DC OUT: 24 V DC / 1-2-4-6 A
Art.No.: 9000-41034-0100600
Alternative product:    9000-41084-0100600
Weight: 0.191 kg
Country of origin:  CZ
Out of Stock - Contact Us for Availability
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

MICO 4.6
4 channels
Current adjustment 1, 2, 4, 6 A
Certificate
Certificate
Certificate
Certificate
Certificate
Certificate

Input
Operating voltage 24 V DC (18...30 V DC)
Output
Inrush capacity max. 20 mF (per channel)
Current adjustment 1 A, 2 A, 4 A, 6 A, by countersinked rotary switch, sealed
Control inputs
Input voltage (ON) 10...30 V DC
Impulse length (ON) min. 20 ms
Control outputs
Group alarm output potential free 30 V AC/DC, 100 mA
General data
Mounting method DIN-rail mountable TH35 (EN 60715)
Temperature range 0...+55 °C (storage temperature -40...+80 °C)
Connection Spring clamp terminals

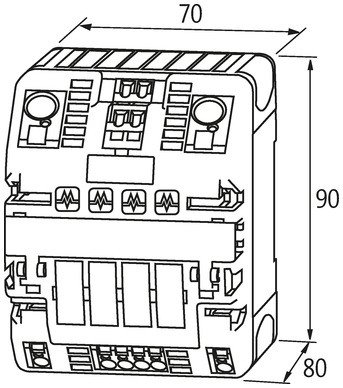

Dimensions H×W×D 90×70×80 mm
Bridging concept two sides, with spring clamp terminals or bridge set (max. 40 A)
Output terminals per output 1× 4 mm²
Input terminals 2× 16 mm²
Alarm terminals 2.5 mm²

ECLASS-6.0 27371802
ECLASS-6.1 27371802
ECLASS-7.0 27371802
ECLASS-8.0 27371802
ECLASS-9.0 27371802
ECLASS-10.1 27371802
ECLASS-11.1 27371802
ECLASS-12.0 27371802
ETIM-5.0 EC001440
customs tariff number 85363010
EAN 4048879000055
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: CSA CA 9000-41034-0100600_MC165828-C3211-07_C3218-06_csa_z_d.pdf
  • Download Approval: CSA US 9000-41034-0100600_MC165828-C3211-87_C3218-86_csau_z_d.pdf
  • Download Approval: UL Listed CA 9000-41034-0100600_E200364-NMTR7_ulc_z_a.pdf
  • Download Approval: UL Listed US 9000-41034-0100600_E200364-NMTR_ul_z_a.pdf
  • Download Approval: UL Registered US 9000-41034-0100600_E321289-QVRQ2_ur_z_d.pdf
  • Download Certificate: GL  9000-41034-0100600_TAA00001DK-DNVGL-2022-09-17_gl_z_e.pdf
  • Download Construction files: DXF 9000-41034-0100600_dxf_x_a.zip
  • Download Construction files: P8 9000-41034-0100600_p8_2_60.zip
  • Download Construction files: STP 9000-41034-0100600_stp_x_a.zip
  • Download Document: Installation guide 9000-41034-0100600_ina_x_31.zip
  • Download Document: Tender texts 9000-41034-0100600_Mico4.6.docx
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 9000-41034-0100600_1163-04.16_uk_z_a.pdf
  • Download Information: EU declaration of conformity 9000-41034-0100600_1163-04.16_ce_z_f.pdf
  • Download Information: MTTF Report 9000-41034-0100600_SN29500 (40°C)-BerechnungV1.3_mttf_p_a.pdf
