M12 Power female 0° L-cod. IDC
5-pol., 0,75 - 1,5mm², 5,8 - 13,5mm, shielded
| Art.No.: | 7000-P4421-0000000 |
| Alternative product: | 7000-P4611-0000000 |
| Weight: | 0.095 kg |
| Country of origin: | RO |
Available
Description

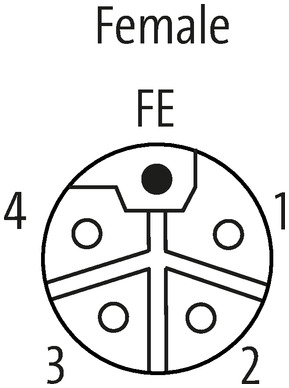

M12 (female) 5-pole, L-coded
Field-wireable
IDC terminals
0.75...1.5 mm²
Sealing range (cable Ø)
5.8...13.5 mm
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Field-wireable
IDC terminals
0.75...1.5 mm²
Sealing range (cable Ø)
5.8...13.5 mm
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Side 1
| Family form head 1 | M12P |
|---|---|
| Coding head 1 | L |
| Material contact | Copper |
Electrical data | Supply
| Operating voltage DC max. | 63 V |
|---|---|
| Current operating per contact max. | 12 A |
Installation
| Connection cross section max. | 1,5 mm² |
|---|
Installation | Connection
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting set | M12 x 1 |
| Width across flats | SW17 |
| Mating cycles min. | 500 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67 |
|---|---|
| Protection degree additional condition | inserted, screwed |
Mechanical data
| Contour for corrugated hose | without |
|---|
Mechanical data | Material data
| Coating housing | Nickeled |
|---|---|
| Coating contact | gold plated |
| Material housing | Zinc die-casting |
| Material contact carrier | PA |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
|---|---|
| Clamping range min. | 5,8 mm |
| Clamping range max. | 13,5 mm |
| Height | 53 mm |
| Width | 25 mm |
| Depth | 25 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 85 °C |
Commercial data
| ECLASS-6.0 | 27279221 |
|---|---|
| ECLASS-7.0 | 27440104 |
| ECLASS-8.0 | 27440104 |
| ECLASS-9.0 | 27440102 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440116 |
| ETIM-5.0 | EC001855 |
| customs tariff number | 85366990 |
| GTIN | 4048879682558 |
| Packaging unit | 1 |
